26
Jul 2024

sPOD is proud to announce the release of the BantamX Upfitter power management system for the 2023-on Ford F-250/350 Super Duty trucks. This system has been engineered specifically to wire into the factory upfitter switches of the Super Duty.

The BantamX has 8 circuits of power each at 30A per channel, 100A total, the connect-and-go system has been designed to fit seamlessly into your vehicle to fit your needs. No longer are you limited to the power output of the stock upfitter switches, the BantamX offers more versatility to power a multitude of powered accessories such as lights, actuators, lockers, fans and much more.

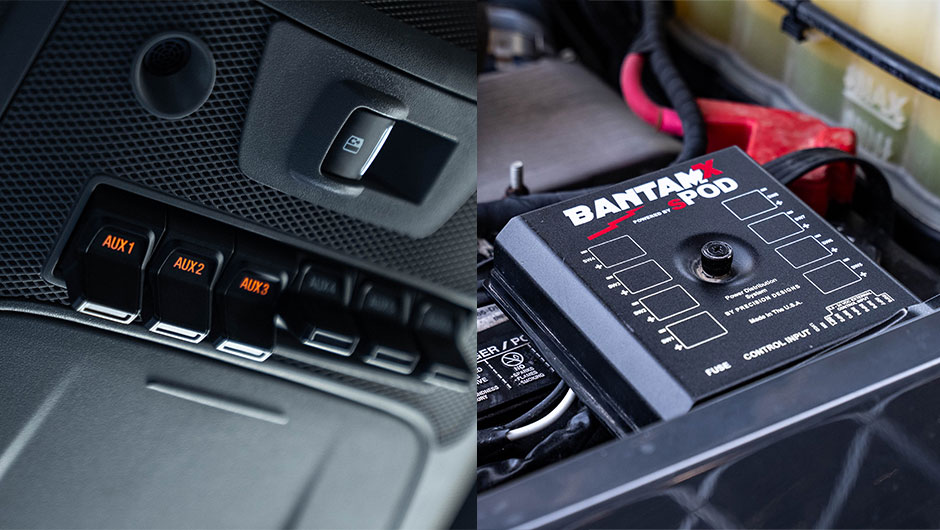

  • Use your OEM upfitter switches to trigger your BantamX
  • Increase amp rating across the first four switches to 30 Amps
  • Gain two to four extra switches with the BantamX, depending on configuration
  • Bluetooth functionality through the sPOD app: output dimming, strobing, flashing, memory, auto power-up, momentary settings, switch linking and more
  • No longer need to run a controller cable through vehicle firewall

sPODConnect™

Designed and equipped with built-in sPODConnect™ Bluetooth technology allows users to program from any iOS or Android device via the sPOD app. With a wide range of programming options available, including output dimming, strobing, flashing, master-slave functions, memory, auto power-up, momentary settings, switch linking, input control and more.

sGuard™ and LVCO™

No relays, no fuss, the sGuard programmable self-healing technology guards the entire system along with LVCO that automatically disconnects accessories to monitor and protect the battery from over-discharge.

uLink™

The BantamX allows system scalability through the expansion ports of up to 32 channels controlled by one controller with additional BantamX add-on systems. This same feature also allows two controllers to be connected to one BantamX system.

Backed by a 5-year* manufacturer warranty, sPOD allows simple and safe power management that is worry-free, allowing you to take control.

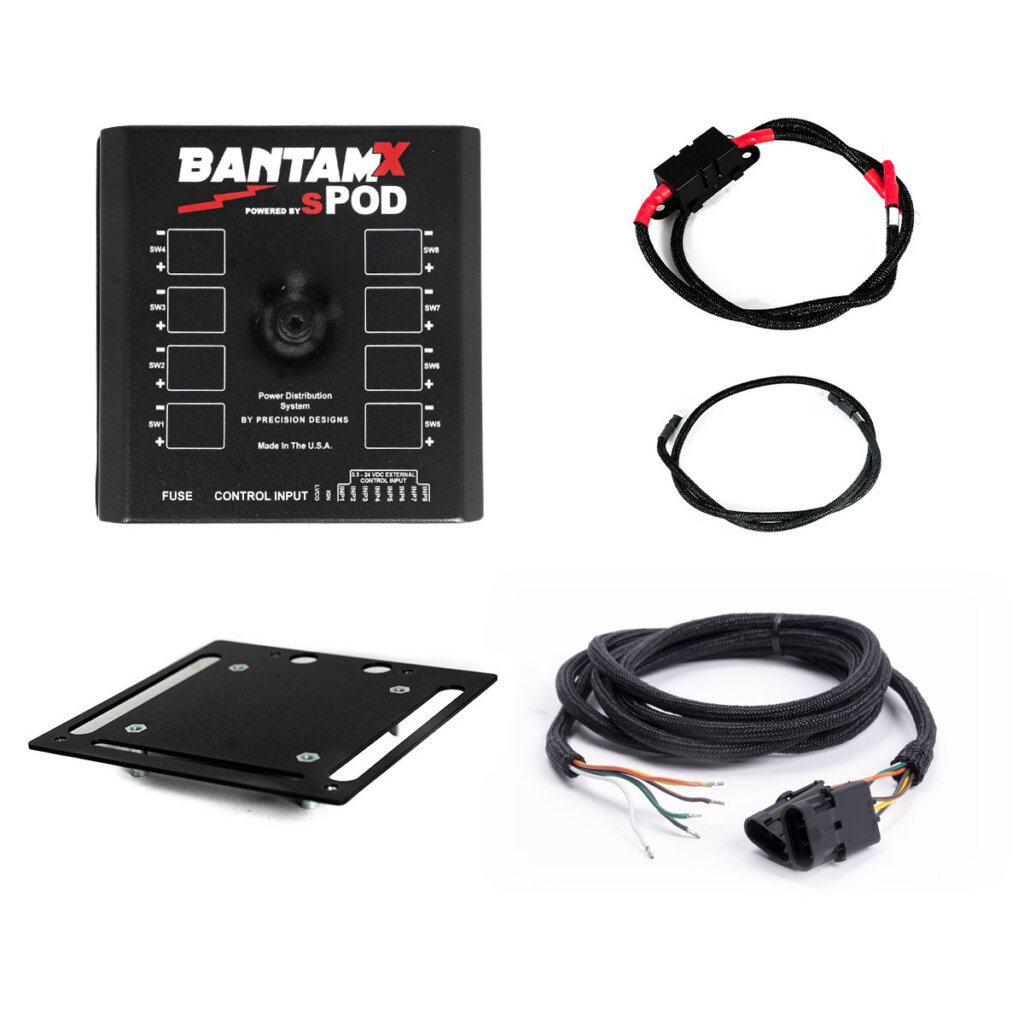

The BantamX Upfitter System includes:

  • (1x) BantamX System
  • (1x) 84” Battery Cable Set w/100Amp In-Line Fuse

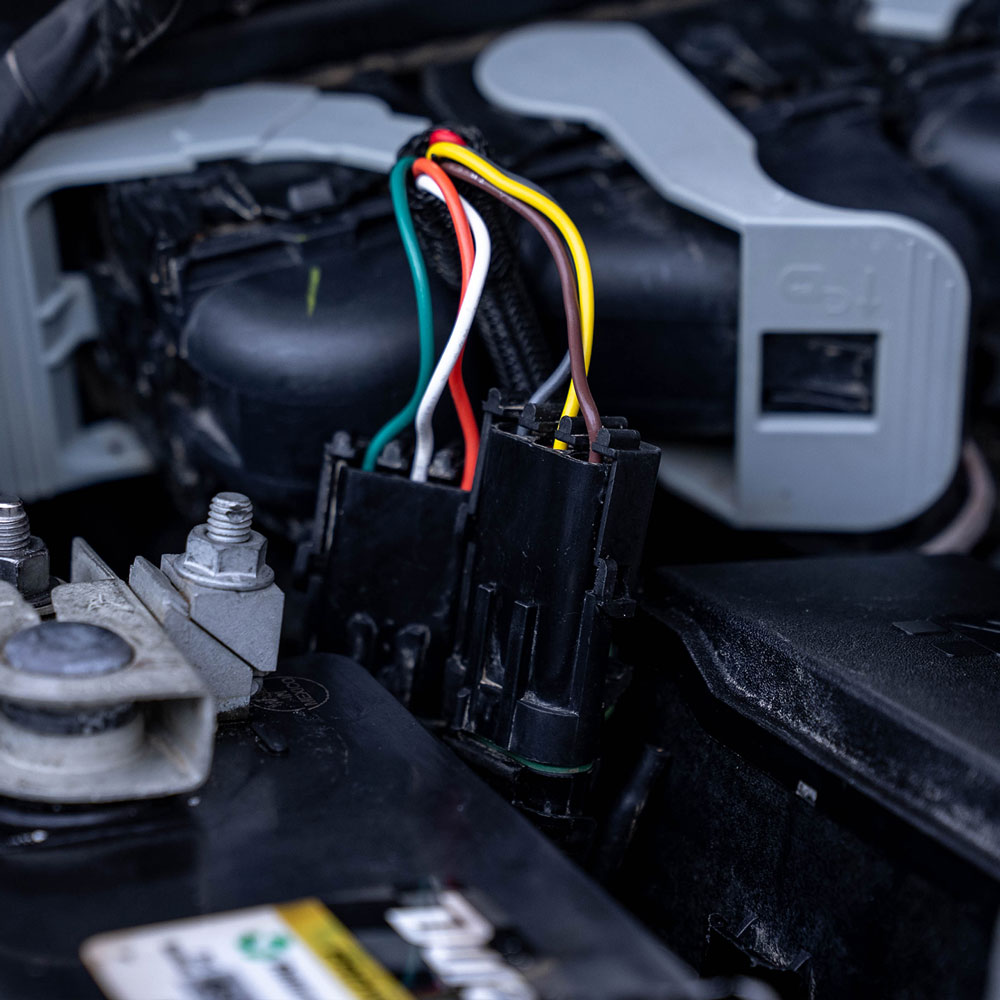

  • (1x) Upfitter Harness
  • (1x) Ethernet Cable
  • (1x) Mounting Bracket
  • (1x) HD Legend Sheet
  • All necessary hardware


Specs for the BantamX:


  • 8 circuits rated at 30 amps at 12.5 VDC per circuit, 100A total

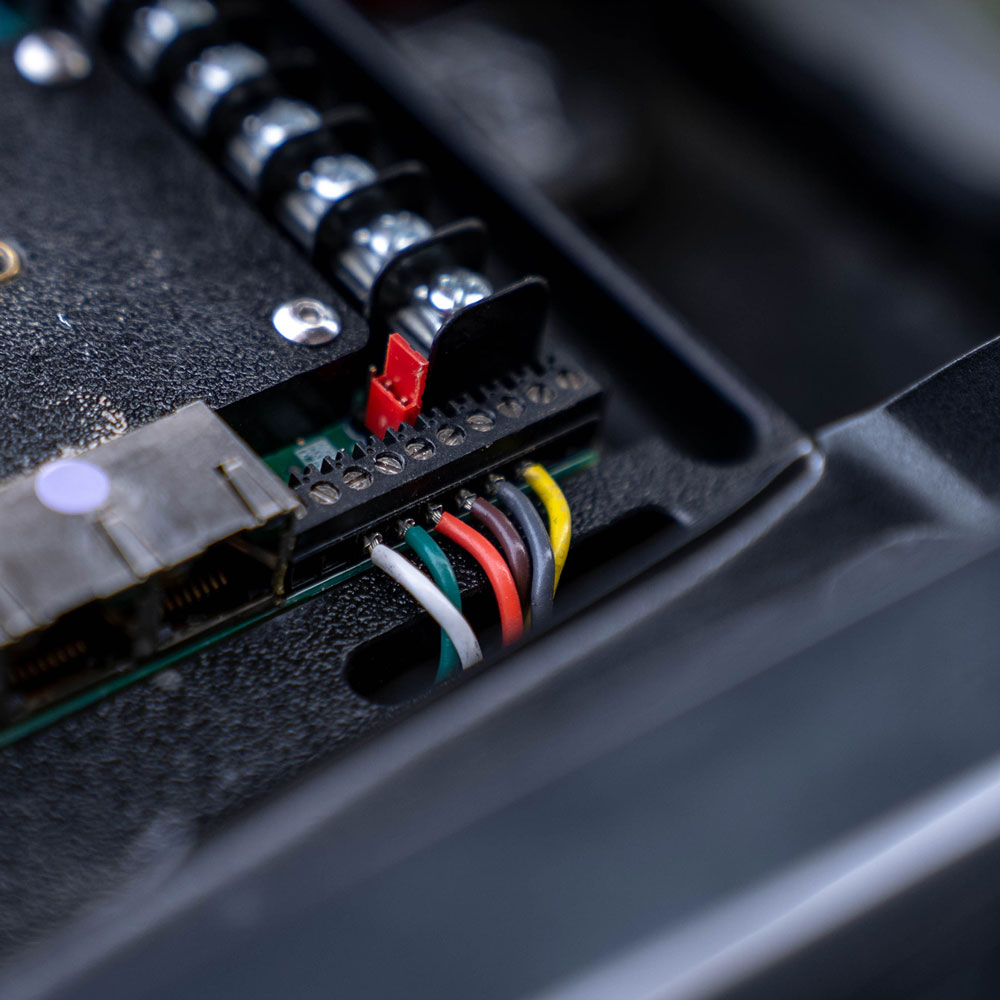

  • 16-position terminal block
  • Integrated low voltage cutoff battery protection w/ optional override
  • 100 amp in-line fuse
  • Operates on 12 VDC or 24 VDC
  • Built in Bluetooth capabilities for remote app control
  • Input control automates functions for all switch circuits
  • System Scalability allows expansion of up to 32 channels, controlled by one controller
  • 2 controller port compatible
  • Power saving deep sleep mode

See more sPOD Power Management Solutions for the Ford Super Duty:

Super Duty Upfitter BantamX System
